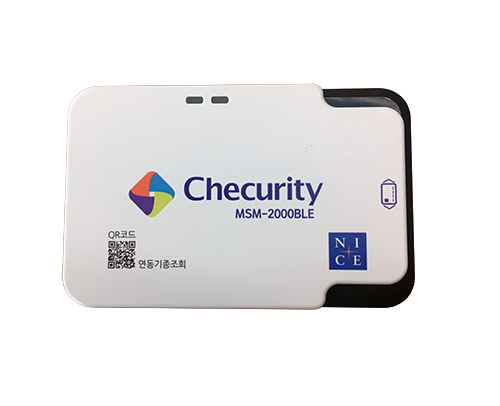

MSM-2000BLE
INTRODUCTION



EMV Level 1&2 compliant

Bluetooth 4.X connector

Compatible with iOS and Android mobile devices

Swipe(2&3 track) and Chip(EMV L1,2)card readers in one unit



GENERAL SPECIFICATIONS



 Card reader

 Dual track(2&3) magnetic strip reader

 Interface

 LED indicators to indicate batter statusy

 Certifications

 EMV Level 1&2, KC, KTC

 Life of Head

 500,000 Card Passes

 Power

 Li-Polmer battery 320mA

 Charge

 Micro 5pin USB Cable

 Dimension

 78.0mm(W)x50.00mm(H)x16.00mm(L)


 Software development Kit

 Android, iOS

 CPU

 ARM Corte-M3 32bitx

 Memory

 Flash:512KB, RAM:128KB

 MS Read IC

 F2F-9000(Sel-developed decoder chip)

 Communication

 Bluetooth 4.X(Low Energy)

 Compatibility

 Android  iOS

 OS Version 4.4 ↑

 OS Version iOS 7




​​
